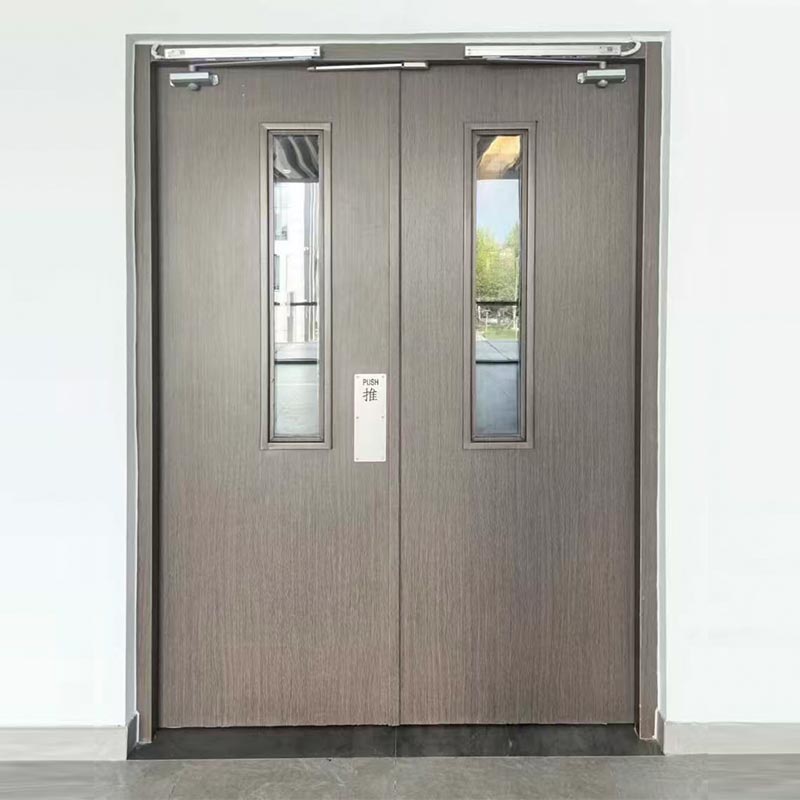

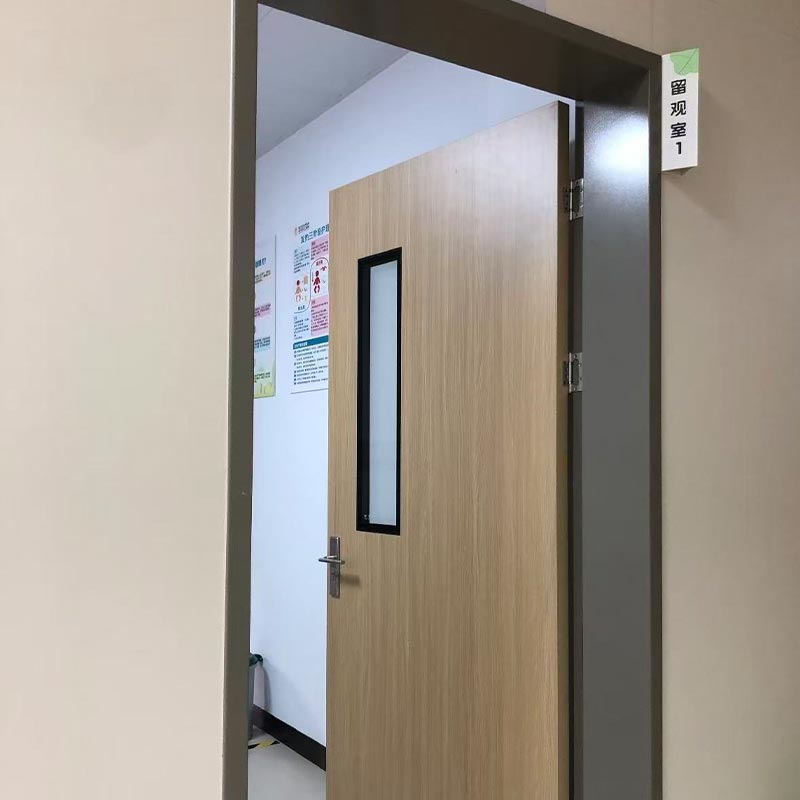

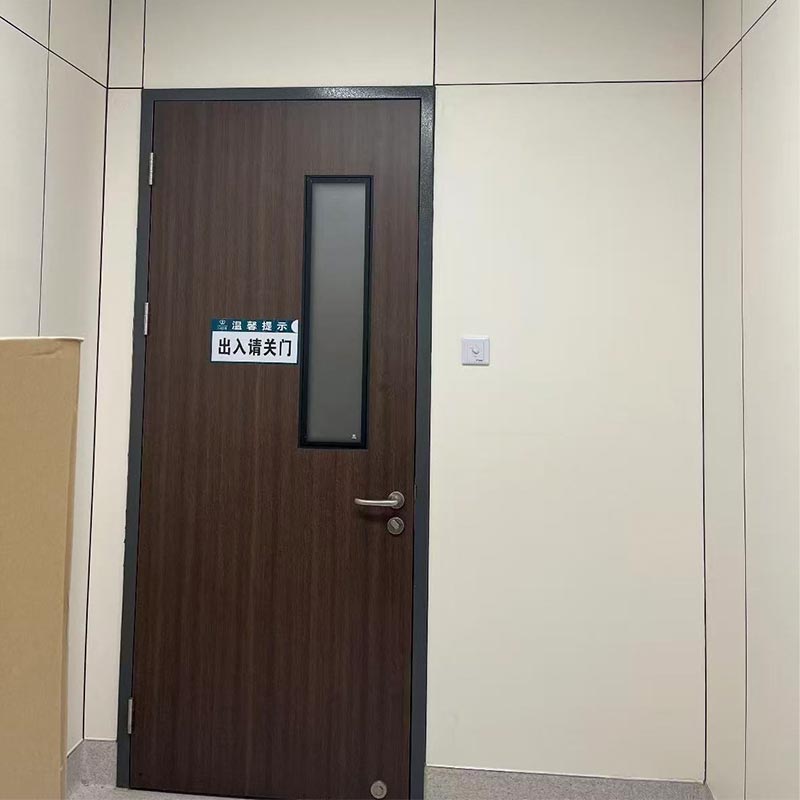

Hospital Steel And Wood Fire Door
Mingjue China manufacturer and factory supplier of Hospital Steel And Wood Fire Door delivers certified fire protection, hygienic surfaces, and patient-friendly design for modern healthcare facilities. It combines durable steel structure with decorative, medical-grade wood finishes, ensuring both safety compliance and a comfortable healing environment.
Send Inquiry
Product Description
As a trusted China manufacturer, supplier, and factory, Mingjue specializes in the Hospital Steel And Wood Fire Door, engineered for hospitals requiring strict fire safety, hygiene, and accessibility standards.
Product Definition
The Hospital Steel And Wood Fire Door is a composite fire-rated door designed specifically for medical environments.
● Provides certified fire resistance to prevent flame and smoke spread
● Maintains safe evacuation routes during emergencies
● Enhances hygiene with antibacterial and easy-clean surfaces
● Supports barrier-free access for patients and medical staff
Structural composition
● Steel frame and internal skeleton ensure strength and stability
● Flame-retardant wood panels improve aesthetics and comfort
● A1-grade core materials deliver insulation and fire resistance
Product Parameter
| Parameter Name | Grade A | Class B | Class C | Remarks |
| Fire Resistance Rating | ≥ 1.5 hours | ≥ 1.0 h | ≥ 0.5 h | Compliant with the GB 12955-2008 standard. |
| Door Frame Material | Cold-rolled steel sheet ≥ 1.2 mm | Cold-rolled steel sheet ≥ 1.2 mm | Cold-rolled steel sheet ≥ 1.2 mm | Available with anti-corrosion and electrostatic spray coating treatments. |
| Door Leaf Panel Material | Cold-rolled steel sheet ≥ 0.8 mm + Flame-retardant wood | Cold-rolled steel sheet ≥ 0.8 mm + Flame-retardant wood | Cold-rolled steel sheet ≥ 0.8 mm + Flame-retardant wood | The wood has undergone flame-retardant treatment, achieving a B1-class fire resistance rating. |
| Core Filling Material | Perlite / Aluminum silicate wool (Class A₁) | Perlite / Aluminum silicate wool (Class A₁) | Perlite / Aluminum silicate wool (Class A₁) | Non-toxic and harmless; smoke toxicity meets the ZA₂ classification. |
| Door Leaf Thickness | 50–55 mm | 45–50 mm | 40–45 mm | Customizable to meet specific requirements. |
| Door Leaf Width | 800–1500 mm | 800–1500 mm | 800–1200 mm | For hospital-specific applications, extra-wide dimensions (≥1200mm) are available upon request. |
| Door Leaf Height | 2000–2400 mm | 2000–2400 mm | 2000–2200 mm | Height extensions are available for use in specialized areas. |
| Hardware Fittings | 3C-certified fire-rated hinges, fire-rated locks, door closers | 3C-certified fire-rated hinges, fire-rated locks, door closers | 3C-certified fire-rated hinges and locks | Each door leaf is fitted with a minimum of three hinges; Class A doors are equipped with a double-latch fire-rated lock. |
| Sealing Strip | Intumescent fire seals (Expansion ratio ≥ 10x) | Intumescent fire seal strip (Expansion ratio ≥ 10x) | Intumescent fire seals | Resistant to high temperatures and features a tight, effective seal. |
| Surface Finish | Electrostatic powder coating / Wood grain transfer printing | Electrostatic powder coating / Wood grain transfer printing | Electrostatic powder coating / Wood grain transfer printing | Colors are fully customizable to complement the hospital's aesthetic style. |
Core Advantages
1.Fire Safety Compliance
● Rated options: A (≥1.5h), B (≥1.0h), C (≥0.5h)
● Fully compliant with GB12955-2008 and 3C certification
● Effectively blocks fire, heat, and toxic smoke
2.Healthcare-Friendly Design
● Rounded edges reduce injury risks
● Smooth closing system prevents hand trapping
● Wide openings support stretchers and wheelchairs
3.Hygienic and bacterial Surface
● Powder-coated steel with ≥99% antibacterial rate
● Resistant to disinfectants and frequent cleaning
● Odor-free and safe for sensitive environments
4.Functional Integration
● Optional fire-rated vision panels
● Sound insulation ≥35dB for privacy
● Smart fire linkage for automatic closing
Applications in Hospitals
● Operating rooms and ICUs
● Patient wards and consultation rooms
● Emergency exits and evacuation corridors
● Pharmacies and laboratory zones
The Hospital Steel And Wood Fire Door adapts to various hospital layouts, ensuring both safety and design consistency.
FAQ
Q: What fire ratings are available for Hospital Steel And Wood Fire Door?
A: Three ratings are available—A (≥1.5h), B (≥1.0h), and C (≥0.5h), allowing selection based on risk level and building requirements.
Q: Is the door suitable for sterile hospital environments?
A: Yes, the antibacterial coating and smooth surface make it ideal for cleanrooms, operating rooms, and ICUs.
Q: Can the Hospital Steel And Wood Fire Door be customized?
A: Yes, sizes, finishes, fire ratings, and accessories can be tailored to specific hospital needs.
Q: How does it improve patient safety?
A: Features like rounded edges, soft closing, and wide access reduce injury risks and improve mobility for patients and staff.
Q: What maintenance is required?
A: Routine cleaning, periodic inspection of hardware, and ensuring proper sealing are sufficient to maintain performance.
